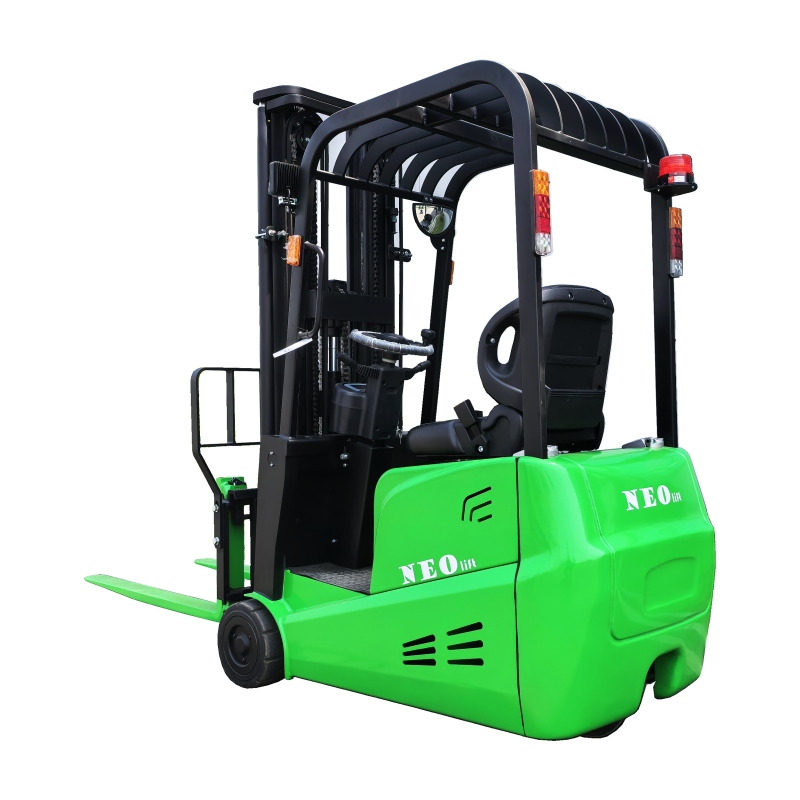

The electric three-wheeled mini counterbalanced forklift is suitable for warehouse and floor operations, with a load capacity of 1.0-1.5 tons and a lifting height of 3.0-4.5 meters. The mini counterbalanced forklift is a lightweight forklift with a small size and light weight, making it suitable for use in confined spaces and on the floor.
رقم الصنف :
NPMالطلب (الحد الأدنى لكمية الطلب) :
1قسط :
T/Tأصل المنتج :
Chinaلون :
Green/Red/Yellow/Customizedميناء الشحن :
Shanghai/Nanjing/Qingdao/Ningbo,etcمهلة :
20-30 daysوزن :

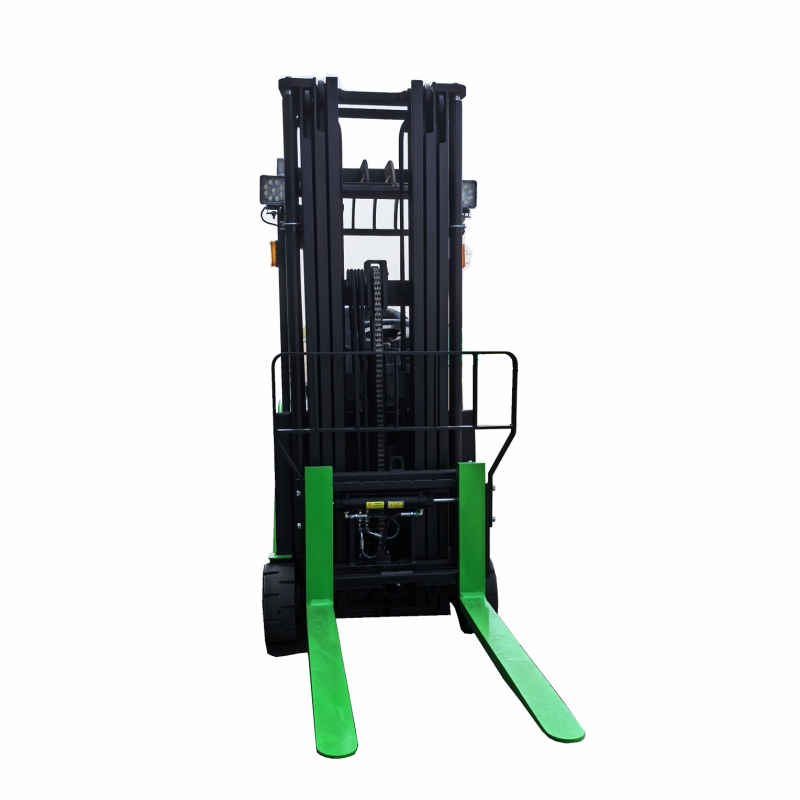

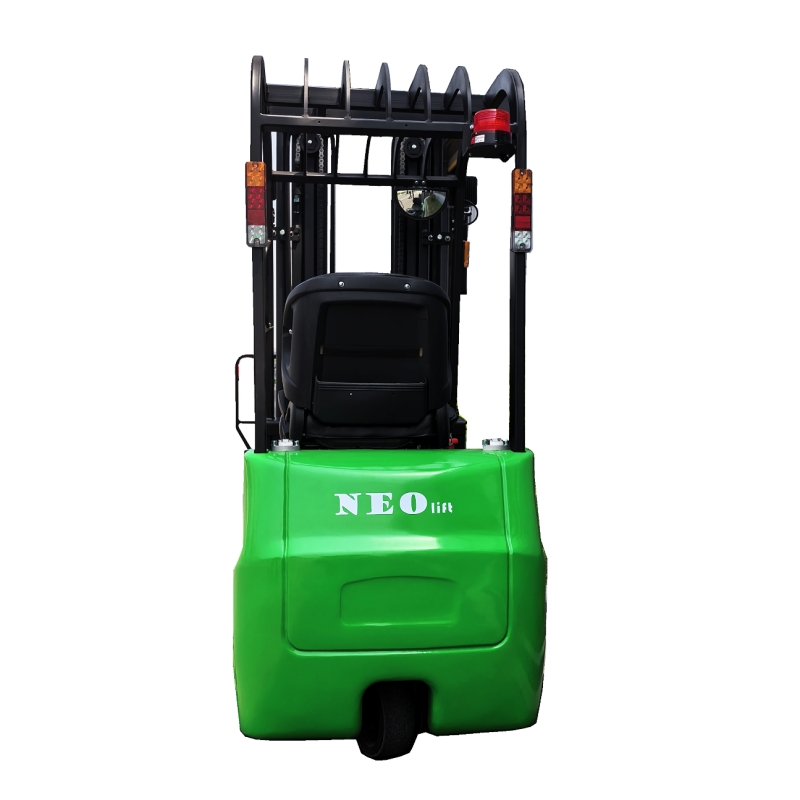

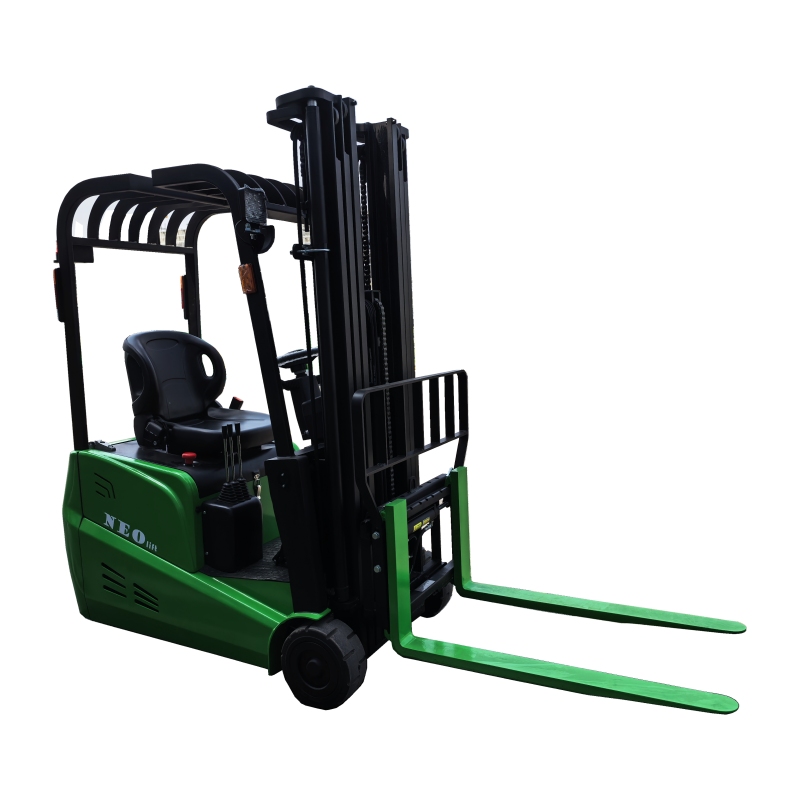

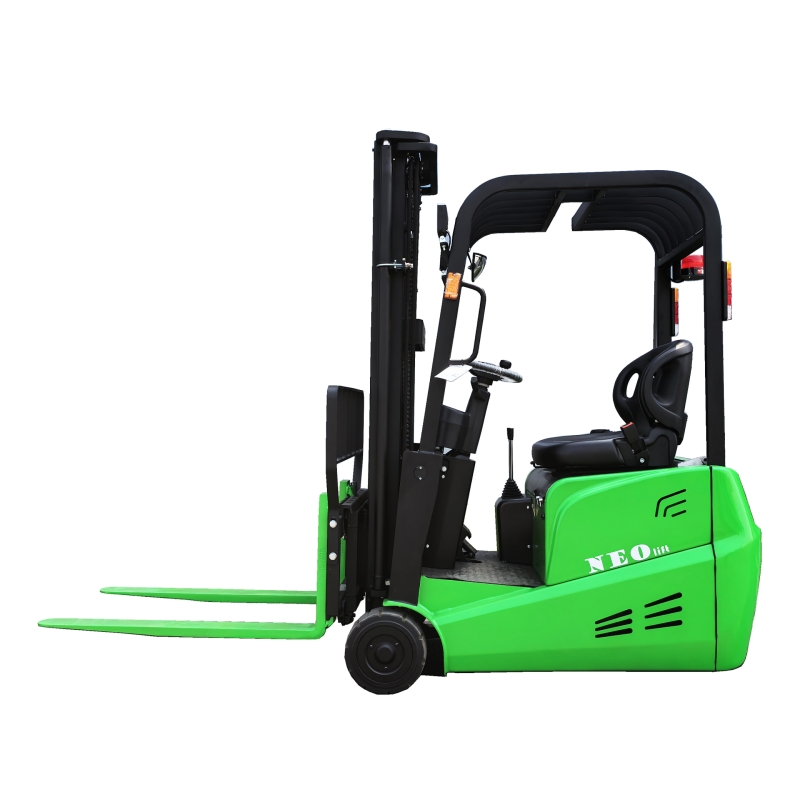

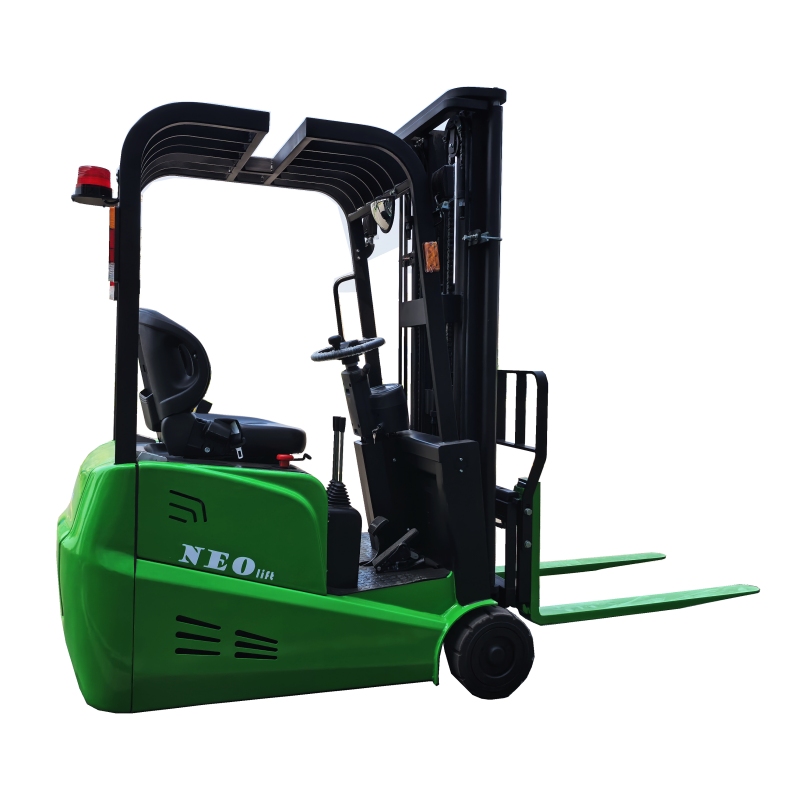

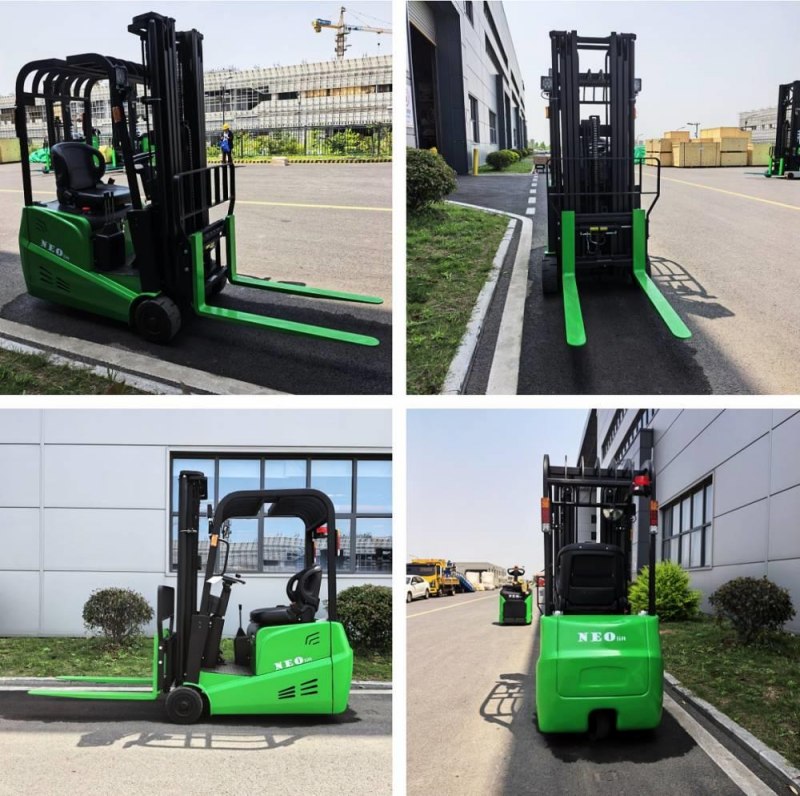

2100-2500kgElectric mini 3 wheel forklift with rubber tires
This electric mini 3 wheel forklift with rubber tires features a load capacity of 1,000-1,500 kg and a lifting height of 3.0-4.5 meters. Electric steering makes operation easier. It uses an imported controller (Curtis/Zapi/Immotion). It is AC-driven for stronger power. Available with lead-acid or lithium batteries. Its compact size and lightweight make it suitable for intensive warehouse operations and floor work. It is widely used in industries such as medical, electronics, hardware, and food.
Details:
Features:
1. Lightweight forklift, compact and lightweight, suitable for operations in confined spaces and on floors
2. Maintenance-free AC drive system for faster and more precise vehicle response
3. Imported controller for greater stability and safety
4. Small-diameter load wheels and lower front overhang for enhanced safety
5. Pure electric steering for low steering effort, comfort, and energy efficiency
6. Multi-way valve controls for fork lift and lowering, providing high control accuracy
7. Standard cornering and high-lift speed limits
8. Standard electrical maximum lift height limiter
9. Mast cushioning technology for safer stacking

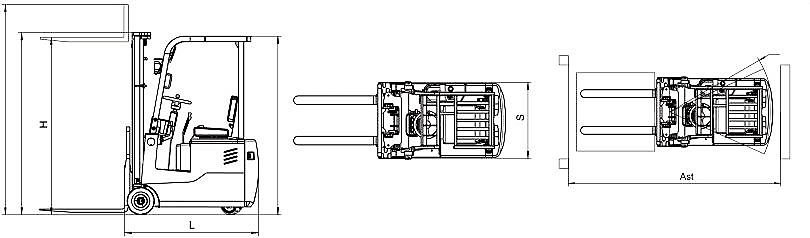

Specification：
| Manufacturer | NEOlift | |
| Model | NPM15 | |
| Power type | Full-electric | |
| Load capacity | kg | 1500 |
| Total weight(including battery) | kg | 2150 |
| Lifting height | mm | 3000 |
| Overall length(with Fork) | mm | 2657 |
| Overall length(without Fork) | mm | 1587 |
| Overall width | mm | 850 |
| Fork size | mm | 35/100/1070 |
| Drive motor | kw | AC 2.5 |
| Lifting motor | kw | DC 3.0 |
| Battery capacity | V/Ah | 24V/300Ah |
| Charger | V/A | 24V40A |
| Drive controlling type | AC |
Application:
1.Food
2.Medical
3.Electronics
4.Hardware
5.Chemical
6.Logistics
Certificate:
Why choose us?
1.NEOlift has more than 20 years of production and R&D experience in the field of electric material handling equipment! We can provide customers with a full range of customized handling equipment according to their various needs.
2. The product range is particularly complete, and we can provide customers with customized solutions for large-tonnage handling equipment. We have a strict quality management system, and the product quality is safe and reliable.
3. We have a strong professional technical R&D team. NEOlift has more than 60 professional technical R&D personnel, of which more than 30% have a master's degree,5 of them have a doctorate, and more than 60% have been engaged in this industry for more than 5 years.
4. We have an experienced after-sales team, which can provide 24-hour online after-sales service for global customers, professional and timely, to solve your worries.
5. We have a strict quality inspection department, and each component has a traceability record. From components to complete vehicles, there are strict quality controls to ensure the quality of the product from the source.
6.Shanghai Zon-Cho Huge Science And Technology Co., Ltd is your most reliable partner.
